NEUGART planetary gearbox model specifications

Industry news|2022-04-19| admin


Newcastle planetary gearbox entered the domestic market at the end of the last century. In 2004, the installation plant of Shenyang Newcastle gearbox was established, and it is also one of Newcastle's three overseas assembly plants. After years of industry accumulation, the application industry of Newcastle gearbox has become more and more extensive, and it is widely used in many industries, manufacturing, transmission industries, etc., such as laser cutting, truss, food industry, robotics, automation industry, machine tool industry, printing Industry, lithium battery industry, coating machine, agricultural product industry, have accumulated rich experience in industry application, and have used gearbox models in many industries. The types of gearboxs are gradually diversified and are roughly divided into the following categories:

Planetary gearbox with output shaft PLE, PLQE, PLPE, PLHE, PSBN, PSN, PLN;

With flange gearbox PLFE, PSFN, PLFN, PFHE;

Right angle gearbox with output shaft WPLE, WPLQE, WPLPE, WPLN;

Right-angle gearbox with flange output WPLFE, WPSFN;

Angle gearbox WGN with hollow shaft;

Sanitary planetary gearbox HLAE;

High-precision gearbox NGV for industrial ground transport vehicles;

Geared gearboxs and special gearboxs.

After years of development, Newcastle gearbox has a large proportion in the high-precision gearbox market. Over the years, it has continued to develop sophisticated manufacturing technology, and accumulated rich experience and technology in special gearbox or gear parts. Trusted by many customers.

Today, I will introduce the relevant knowledge of Newcastle gearbox series models and specifications for your reference when selecting models.

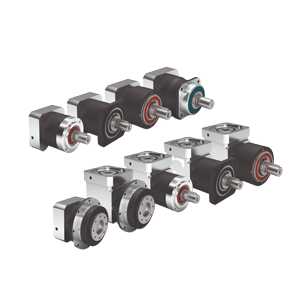

NEUGART gearbox model specifications Economy Line:

Model Specification First gear ratio Secondary speed ratio Three-speed ratio
PLE 40、60、80、120、160 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64 60、80、100、120、160、200、256、320、512
PLQE 60、80、120 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64 60、80、100、120、160、200、256、320、512
PLPE 50、70、90、120、155 3、4、5、7、8、10 9、12、15、16、20、25、32、40、50、64、100 \
PLHE 60、80、120
3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100 \
PLFE 64、90、110
3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100 \
PFHE 64、90、110 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100 \
WPLE 40、60、80、120 3、4、5、7、8、10 9、12、15、16、20、25、32、42、64 60、80、100、120、160、200、256、320、512
WPLQE 60、80、120
3、4、5、7、8、10 9、12、15、16、20、25、32、40、64 60、80、100、120、160、200、256、320、512
WPLPE 50、70、90、120 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100 \
WPLFE 64、90、110 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100 \

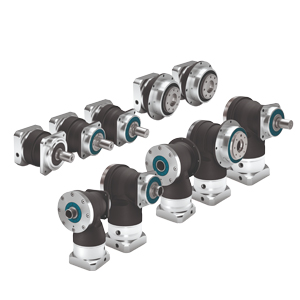

NEUGART gearbox model specification Precision Line:

Model Specification First gear ratio Secondary speed ratio
PSBN 70、90、115、142 3、4、5、7、8、10 12、15、16、20、25、35、40、50、70、100
PSN 70、90、115、142、190 3、4、5、7、10 12、15、16、20、25、35、40、50、70、100
PLN 70、90、115、142、190 3、4、5、7、8、10
12、15、16、20、25、32、40、64、100
PSFN 64、90、110、140、200
4、5、7、10 16、20、25、35、40、50、70、100
PLFN 64、90、110、140、200 4、5、7、8、10 16、20、25、32、40、50、64、100
WPLN 70、90、115、142 4、5、7、8、10 16、20、25、28、32、35、40、50、64、100
WPSFN 64、90、110、140 4、5、7、8、10 16、20、25、28、32、35、40、50、70、100
WGN 70、90、115、142 4、5、7、8、10 \


Application-specific gearbox Model Specifications:

Model Specification First gear ratio Secondary speed ratio
HLAE 70、90、110 3、4、5、7、8、10 9、12、15、16、20、25、32、40、64、100
NGV 64、90、110 9、12、15、16、20、25、32、40、64 \
